Laguna Tools Classic Bandsaw - 18|bx

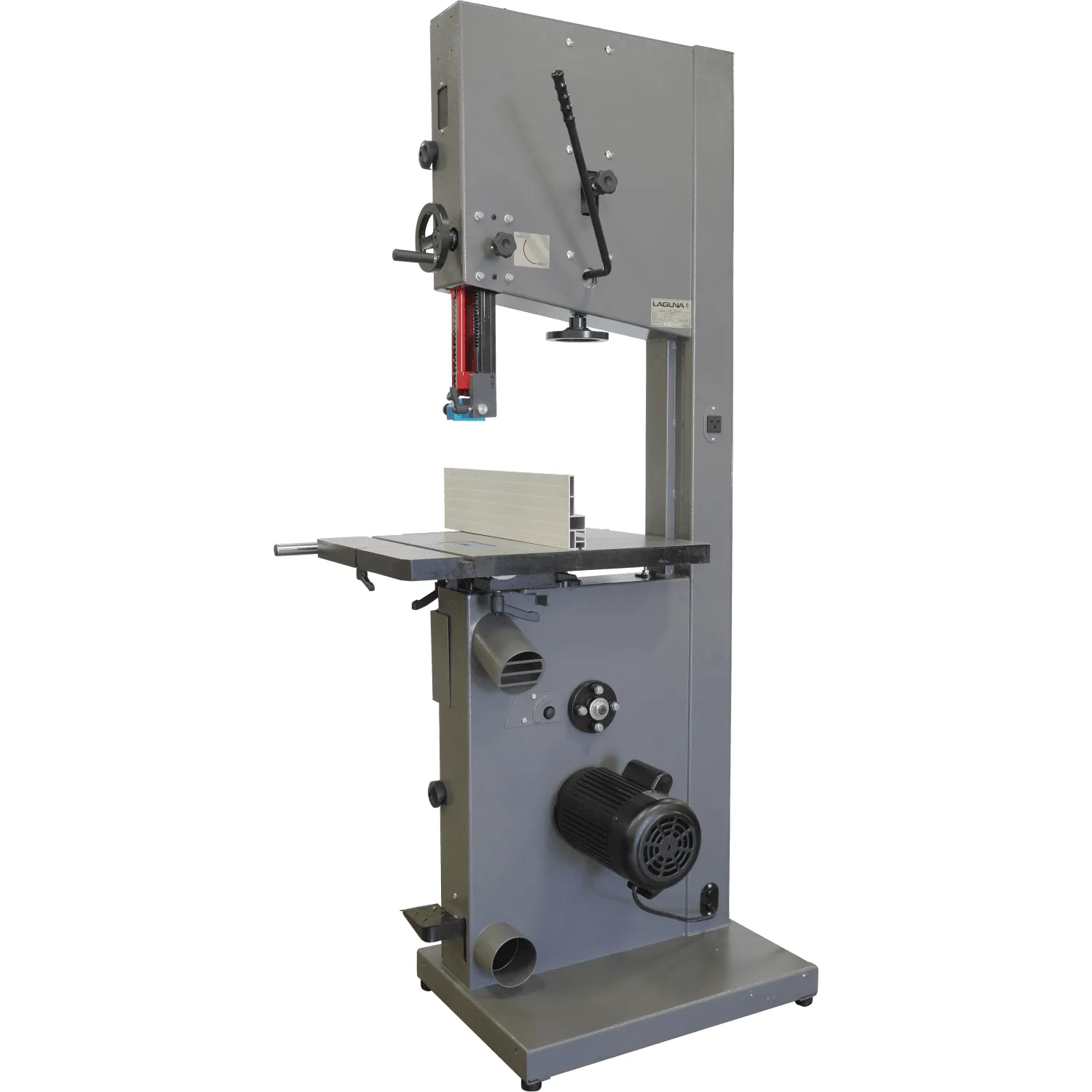

The 18|BX Bandsaw follows in the traditions of high-performance and reliability established by the widely-used Laguna Tools 14|12 and 14|bx models. The 18|bx is built around a 3HP, 220V motor and 145″ (368 cm) blade for consistent results, cut-after-cut, regardless of wood material. (Shown with optional mobility kit)

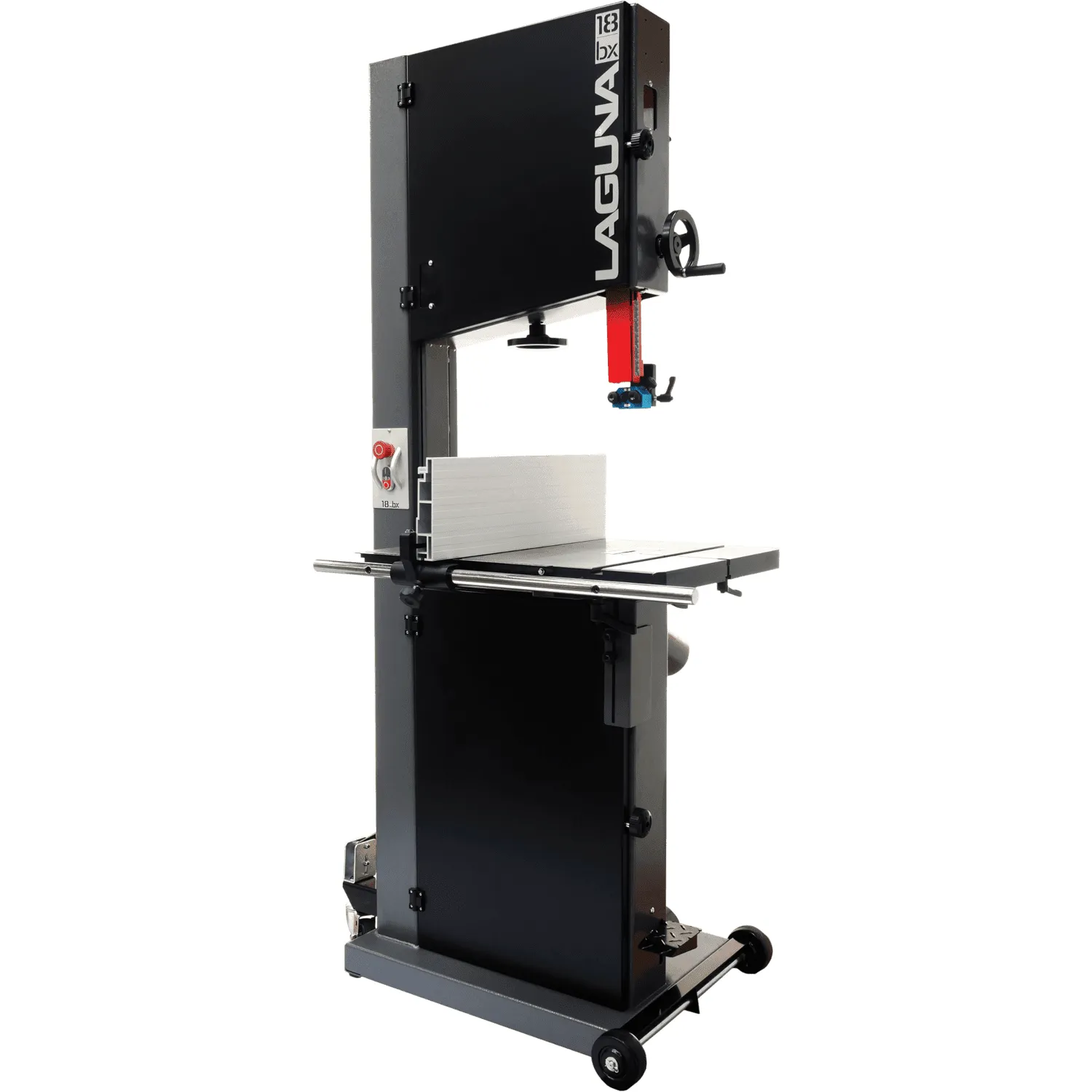

Shown with optional Blade, Lighting and Mobility Kit

THIS MACHINE SOLD EXCLUSIVELY THROUGH OUR DEALER NETWORK

Features:

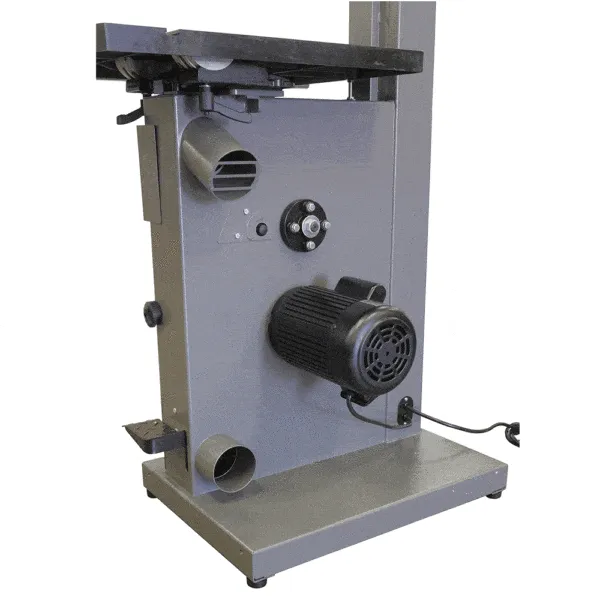

Motor: 3HP, 220V, 1 Ph. 12 Amp.
Recommended Breaker: 20 Amp.
Magnetic Starter
Min-Max Blade Width: 1/8″ – 1-1/4″
Resaw Capacity: 16″
Throat: 18″
Blade Length: 145″

Videos

Additional Details

Disc-Brake With Micro Switch

220V Outlet On Back For Light

Window For Tension

Window For Tracking

Magnetic Blade Tension Guide

Worm Gear & Pinion Upper Guide

10 Point Laguna Ceramic Guides

Flat Poly-Groove Drive Belt

Premium Anodized Insert With Micro Adjustment

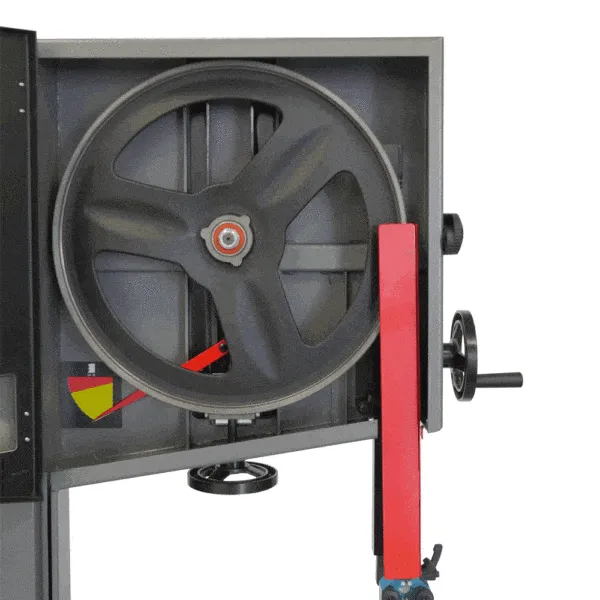

Dynamically Balanced Cast Iron Wheels

Urethane Single Piece Snap-On Tire

Cast Table Size: 20″ x 26″

Table Tilt: -6°, 45°

Cast Table Size: 20″ x 26″

Table Tilt: -6°, 45°

Quick-Release Tension

Hi/Low Anodized Aluminum Fence: 22-½″ x 5-¾″ x ½″

Table Height: 38″

Dust Ports: 4″ x 2

Overall Height: 77-¾″

Dimensions (Base): 27″ x 20″

Dimensions Overall: 36″ x 30″

Dimensions Box: 36″ x 84″ x 30″

Weight (Net/Ship): 410/460 lbs

*Optional Accessory – 18|bx Wheel System

Foot Operated
360° Omni-Directional
Rubber-Coated Wheels
Adjustable Rubber Pads

Oilite Bronze Bushing Allows For Less Friction & Longer Life
Easy Install With No Drilling Required
Pedal Raises & Lowers Front Wheel
Wheels Mounted Outside Frame To Maximize Stability

*Optional Accessory – Pro Light System

Swivels 220°
12 Volt/50 Watt
Tilts Vertically 320°
Built-In Transformer
Independent On/Off
Ribbed Aluminum Case

Halogen Hi-Intensity Light
Bright, Glare-Free Flood Light
Designed for Even Light Distribution
Reinforced Glass, Dustproof Design
Top and Side Cabinet Mounting Position
