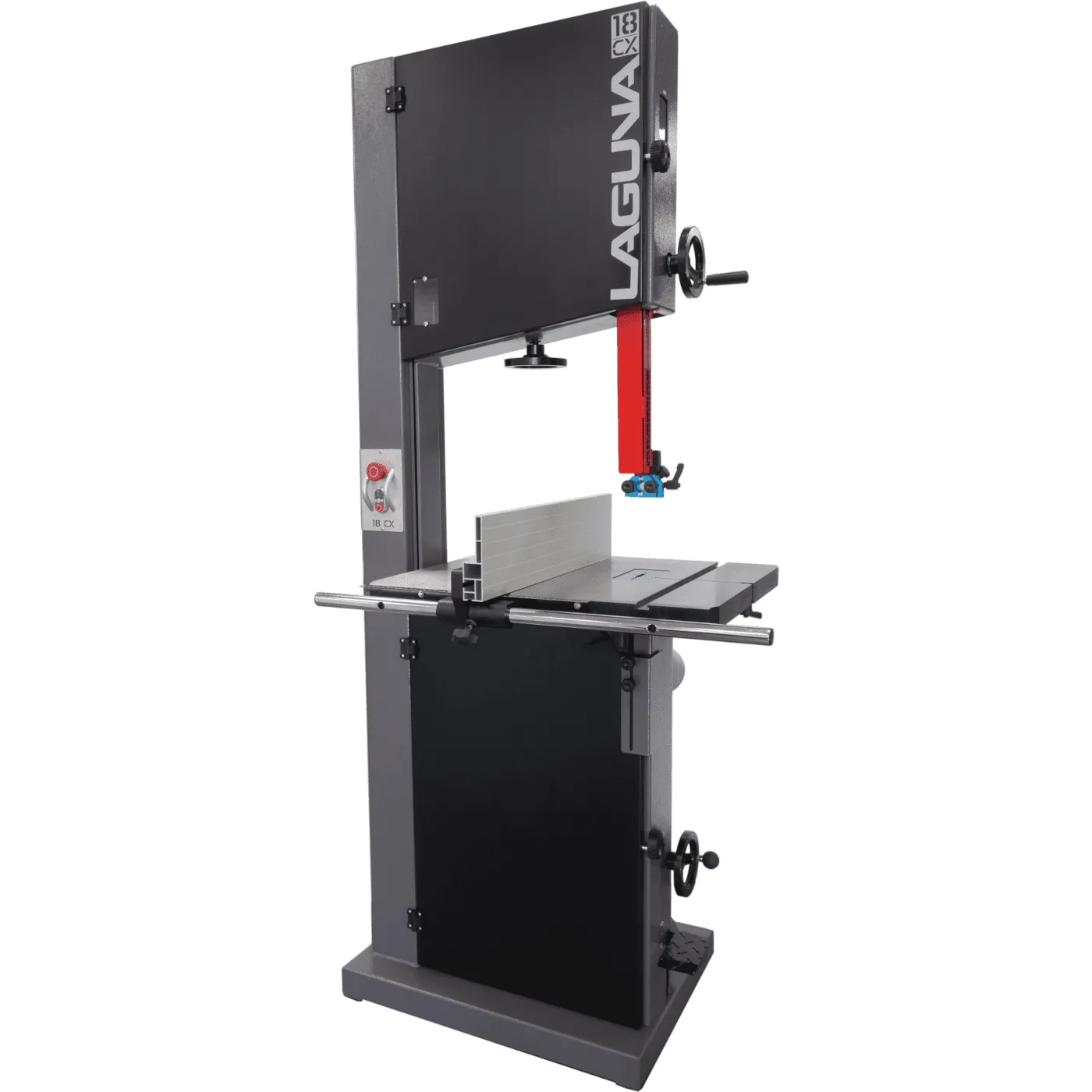

Laguna Tools Classic Bandsaw - 18|CX
The 18|CX Bandsaw follows in the traditions of high-performance and reliability to be expected from a Laguna Tools Bandsaw. The 18|CX is built with a 1.75HP, 110V motor and features variable speed control to cut through metals and wood with ease.
THIS MACHINE SOLD EXCLUSIVELY THROUGH OUR DEALER NETWORK
Features:
- Motor: 1.75HP, 100V, 14/7 Amp.
- Recommended Breaker: 20 Amp.
- Magnetic Starter
- Min-Max Blade Width: 1/8″ – 1-1/4″
- Resaw Capacity: 16″
- Throat: 18-7/32″
- Blade Length: 145″
Videos
Additional Details

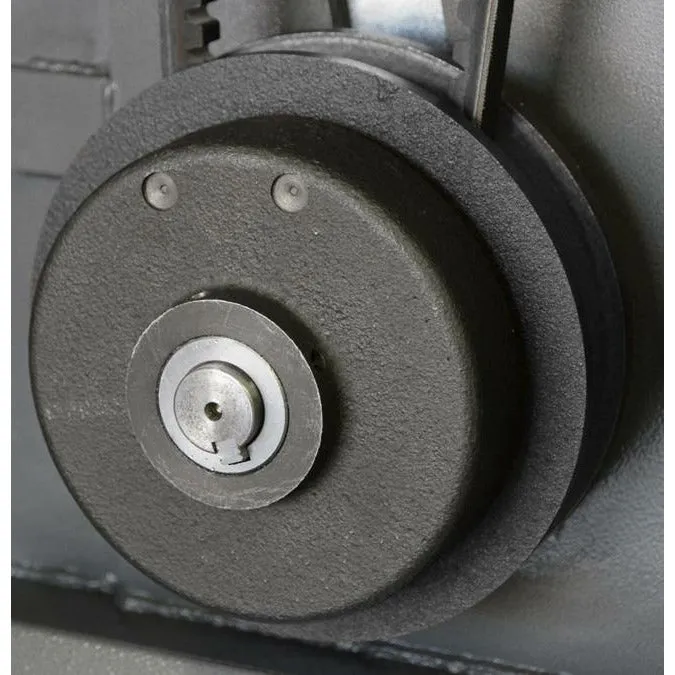

Disc-Brake With Micro Switch
110V Outlet On Back For Light
Window For Tension
Window For Tracking
Magnetic Blade Tension Guide
Worm Gear & Pinion Upper Guide
10 Point Laguna Ceramic Guides

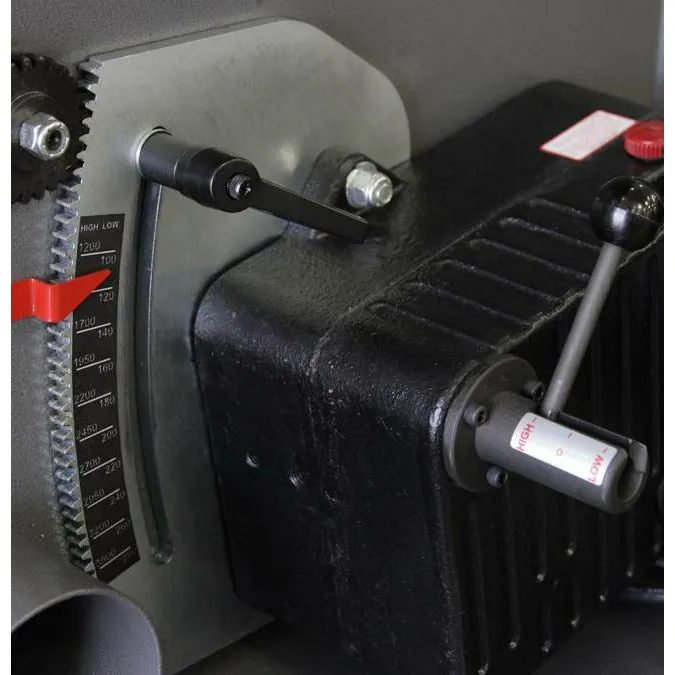

Mechanical Variable Speed Drive
Low Blade Speed: 100-290 FPM
High Speed Blade: 1200-3500 FPM
Anodized Insert With Micro Adjustment
Dynamically Balanced Cast Iron Wheels
Urethane Single Piece Snap-On Tire
Cast Table Size: 20″ x 26″
Table Tilt: 6°, 45°
Quick-Release Tension
Hi/Low Anodized Aluminum Fence: 22-¾″ x 7-¼″ x 11/16″
Table Height: 38″
Dust Ports: 4″ x 2
Overall Height: 77-¾″
Dimensions (Base): 27″ x 20″
Dimensions (Overall): 38″ x 36″
Dimensions (Box): 82″ x 34″ x 36″
Weight (Net/Ship): 480/545 lbs
Shipping Dimensions (L x W x H): 55″ x 22″ x 25″

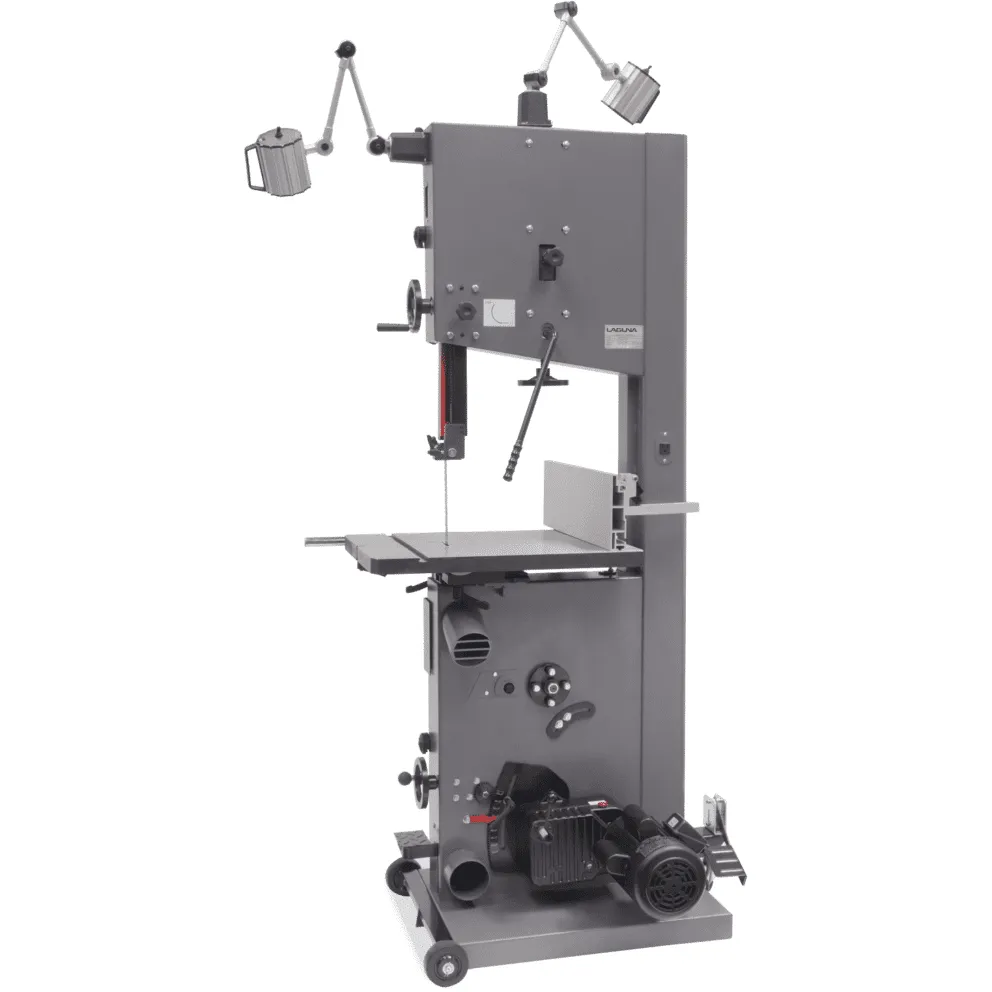

18BX & 18CX Wheel System
- Foot Operated
- 360° Omni-Directional
- Rubber-Coated Wheels
- Adjustable Rubber Pads
- Oilite Bronze Bushing Allows For Less Friction & Longer Life
- Easy Install With No Drilling Required
- Pedal Raises & Lowers Front Wheel
- Wheels Mounted Outside Frame To Maximize Stability
18BX & 18CX Pro Light
- Swivels 220°
- 12 Volt/50 Watt
- Tilts Vertically 320°
- Built-In Transformer
- Independent On/Off
- Ribbed Aluminum Case
- Halogen Hi-Intensity Light
- Bright, Glare-Free Flood Light
- Designed For Even Light Distribution
- Reinforced Glass, Dust-proof Design
- Top & Side Cabinet Mounting
